Dflow DLab Digital Bottle Top Dispenser 7012300001

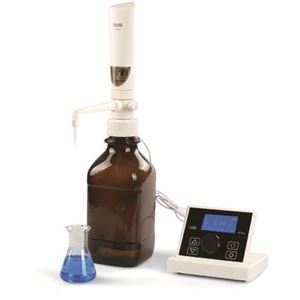

DLab Digital Bottle Top Dispenser 0.01-99.99ml
SKU: 7012300001
Manufacturer: Dragon Lab

• Motor operation minimizing the grip force



• Electronic control decreasing the repeatitive strain injury



• The remote control panel makes the operating process free of manual disturbance



• Complete with dispenser and stepper function



 Volume range

 0.1ml-99.9ml, Max piston lift is10ml, resolution is 100μl

 Volume accuracy

 Dispenser: R=10ml±30μl; CV=10ml±10μl

 Stepper R=1ml±6μl; CV=1ml±9μl

 Operating temperature range

 10℃~30℃

 Quality control

 DIN EN ISO 8655

 Control type

 External control



Advantages for the user

 Features

Precise control

Motor operation minimizes the grip force

Easy to operate

 Remote control panel with large display

without the manual error

 Two dispensing modes:Dispenser and stepper function options

Excellent chemical resistance

 Components are made of PTFE, FEP, BSG.

Click for User Manual

Products specifications
Pack Size 1
