Extraction Thimble Filters Glass fiber Thimbles 30x80mm No.86R 30x80mm

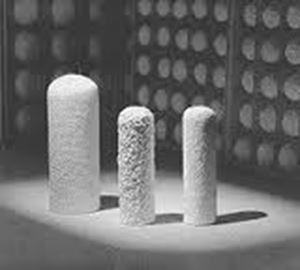

Glass Fiber Extraction Thimbles 30x80mm

SKU: No.86R 30x80mm

Manufacturer: Advantec

High purity extraction thimbles from Advantec MFS are available in cellulose, borosilicate glass, silica fiber, and PTFE.

No. 84 - Cellulose Thimbles: Suitable for Soxhlet type extractions or dust sampling. Lipid content <0.1% by weight.
No. 86R - Glass Fiber Thimbles: Made of strong borosilicate glass fibers, resitant to high temperatures 500°C and most acids.
No. 88R, 88RH - Silica Fiber Thimbles: Made of quartz fibers, resitant to 1000°C. Tapered for easy stack sampler loading.
No. 89, 895 - PTFE Fiber and PTFE/Silica Fiber Thimbles: Durable, temperature-resistant thimbles with minimal trace metals.

Applications include: monitoring dust, organic, metal, or other pollutants.

Type	Filter Material	Weight (g/m2)	Thickness (mm)	Nominal Rating (μm)	Collection Efficiency (%, 0.3 μm DOP)
84	Cellulose	3.6	1.5	8	89
86R	Borosilicate Glass Fiber	1.8	1.6	1	>99.9
88R	Quartz/Silica Fiber	2.2	1.6	-	>99.9
88RH	Quartz/Silica Fiber	2.2	1.6	-	>99.9
89	PTFE Fiber	11.0	1.8	-	>99.9
89S	PTFE - Silica Fiber	6	1.6	-	>99.9
