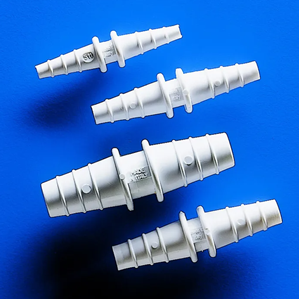

STRAIGHT CONNECTORS PP 4-6 mm KAR510

SKU: KAR510

Manufacturer: Kartell

PRODUCT DESCRIPTION

Autoclavable. Dimensions are shown as both nominal and exact as elasticity of hoses will influence the choice of size. Use hoses selector Art. 1759 to determine "grip". This will then give equivalent crest dimension for the particular connector concerned.

TESTED ACCORDING TO REACH REGULATION 1907 / 2006 ANNEX XVII

PRODUCT SPECIFICATION

Art.	Nominal O.D.	Crest O.D. mm max/min	Bore mm
510	4 / 5 / 6	3 / 4.5 / 5.5	2
511	6 / 7 / 8	4.5 / 7 / 8.2	3.5
512	8 / 9 / 10	6.3 / 9 / 11	4.5
513	10 / 11 / 12	8.3 / 10.5 / 13	6.5
514	12 / 13 / 14	10 / 13 / 15	8.5
515	14 / 15 / 16	12 / 14.5 / 17	10.5
