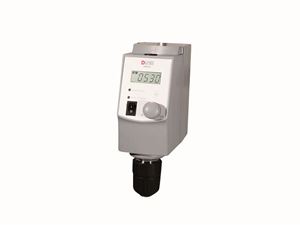

LCD Digital Overhead Stirrer OS20-Pro

LCD Digital Overhead Stirrer (Exclude universal stand), Max. stirring quantity 20L

SKU: OS20-Pro

Manufacturer: Dragon Lab

FEATURES

LCD display for precise monitoring of set and actual speeds
Provides constant speed even with changes in viscosities of the samples
Torque trend display for real time information on viscosity changes
Maintenance free brushless DC motor allows for smooth operation and thereby prevents accidental spillage and splashing
A wide range of speeds from 50-2200rpm with control accuracy of ±3rpm
RS232 interface for PC control and documentation of all opoerational values
Safety circuuits allow for safe stop in anti-stall or overload conditions

Max. stirring quantity [H2O]	20L
Motor type	Brushless DC motor
Motor input power	60W
Motor output power	50W
Voltage	100-240V, 50/60 Hz
Power	70W
Speed range	50-2200rpm
Speed display accuracy	±3rpm
Speed display	LCD
Torque display	LCD
Overload protection display	LED lights
Max. torque	40Ncm
Viscosity max.	10000mPas
Chuck range diameter	0.5-10mm
Dimensions[W×H×D]	83×220×186mm
Weight	2.8kg
Protection class	IP42
Permissible ambient temperature and humidity	5-40℃,80%RH
Data connector	RS232
