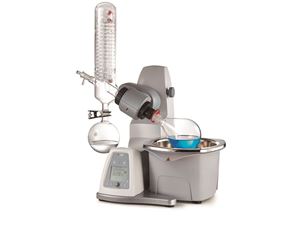

Rotary Evaporator RE100-Pro

Rotary Evaporator with set of glassware vertical (1000ml)
SKU: RE100-Pro
Manufacturer: Dragon Lab

FEATURES

  • Integrated design and large LCD display of both rotation speed and heating temperature allows for optimal controlling of all distillation processes.

  • Ejection mechanism ensures easy removal of evaporating flask

  • Automatic motor lift releases the evaporating flask to a safe position in case of power failure
  • Patented condenser with a 1,500 sq.cm cooling surface

  • Patented double spring sealing ring, made of PTFE, provides an excellent sealing performance

  • 5L heating bath with wide temperature range from room temp. to 180°C

  • Remote function with USB connector provides PC control and data transmission



Motor Type

 Brushless DC motor

 Speed Range

 20-280rpm

 Display

 LCD(speed, temperature, time)

 Clockwise and anti-clockwise

 Yes

 Heating Temperature Range

 Room temp. to 180°C

 Control Accuracy

 ±1 C

 Heating power

 1300W

 Stroke displacement

 automatic 150mm

 Timer

 Yes

 Time Setting Range

 1-999min

 Dimensions [ D×W×H ]

 465×457×583mm

 Weight

 15 kg

 Permissible Ambient Temperature

 5-40℃

 Permissible Relative Humidity

 80%RH

 Protection Class

 IP20

 USB Interface

 Yes

 Voltage/Frequency

 100-120/200-240V 50/60Hz

 Power

 1400W

Dragon Lab is a professional manufacturer of high-quality laboratory instruments for research. The company is dedicated to developing and manufacturing general laboratory instruments, offering researchers unmatched performance and proven value.
