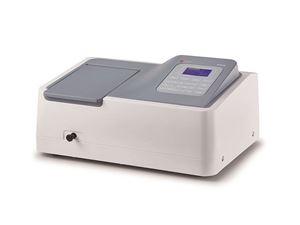

Spectrophotometers SP-V1100

320~1100nm Tungsten lamp, including 4 glass square cuvettes

SKU: SP-V1100

Manufacturer: Dragon Lab

FEATURES

Large 128x64 dots, backlit LCD screen with brightness control displays a large array of data also also in graphical format
Large sample compartment to accomodate 5-100mm path length cuvette with optional holders
Autosetting of wavelength-to calibrate the system through arrow keys and avoid operational errors.
The system can save the test results, upto 200 groups of data and 200 standard curves in the RAM memory
Data can also be restored after a sudden power failure
Optional application software provides computer control to spectrophotometer through USB port

Optical System	Single Beam
Light Source	Tungsten lamp
Spectral Bandwidth	2.0nm
Wavelenth Range	320-1100nm
Wavelength Accuracy	±0.5nm
Wavelength Repeatability	≤0.3nm
Photometric Range	-0.3-3.0A, 0-200%T
Photometric Accuracy	±0.002A@ 0.5A, ±0.004A@ 1.0A, ±0.3%T @100%T
Photometric Repeatability	≤0.001A@ 0.5A, ≤0.002A@ 1.0A, 0.15%T @100%T
Stability	≤0.002A/h @ 500nm(after preheat 2 hours)
Stray Light	≤0.005%T@ 360nm
Sample Compartment	4-position, 10mm pathlength cuvette
Display	LCD
Output	USB Port& Parallel Port (Printer)
Power	110/220VAC, 50/60Hz, 80W
Dimensions[LxWxH]	490x360x210nm
Weight	10Kg

Dragon Lab is a professional manufacturer of high-quality laboratory instruments for research. The company is dedicated to developing and manufacturing general laboratory instruments, offering researchers unmatched performance and proven value.

product information page download :

Products specifications

Pack Size	1
