Laboratory Equipment EV 018_Vacuum Oven EV 018

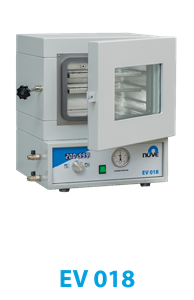

Vacuum Oven 18L
SKU: EV 018
Manufacturer: Nuve

Protection of heat labile samples during drying is assured by using the EV 018 Vacuum Oven. The microprocessor-based control system with PID temperature regulation and sheet heaters provide accurate application of the selected parameter values. The optional NüveTherm™ software and data interface permit monitoring of operation.


A compact design, heat-treated glass observation window and easy clean rounded corners in the chamber make the unit convenient to use. Ball valves are provided for vacuum connection and for back filling with air or inert gas.


A vacuum gauge and two bright digital displays can be seen for a distance. For safety, an independent thermostat takes charge should there be any failure.


  • •   Useful volume: 15 liters
  • •   Temperature range: 70 °C / 200 °C
  • •   Ideal design for gentle drying of heat labile samples and experiments under inert gases
  • •   Programmable PID microprocessor control system
  • •   Easy to use control panel including digital displays for temp. and time
  • •   Stainless steel chamber with high resistance to corrosion
  •    - impervious to most chemical vapours and contamination
  • •   One piece gasket made of silicon, simply fitted directly on the oven body
  • •   Vacuum gauge on the control panel
  • •   Spherical valve for vacuum connection
  • •   Spherical valve for adding dry air or inert gases
  • •   Heat-treated glass window on the door
  • •   Safety thermostat as standard
  • •   Optional NüveTherm™ data control software and RS 232 kit


EV 018 Brochure

Products specifications
Volume 18L
Pack Size 1
